Advance Ply
Tungsten
- Home
- Advance Ply Tungsten
Available in
- 6mm
- 9mm
- 12mm
- 16mm
- 19mm

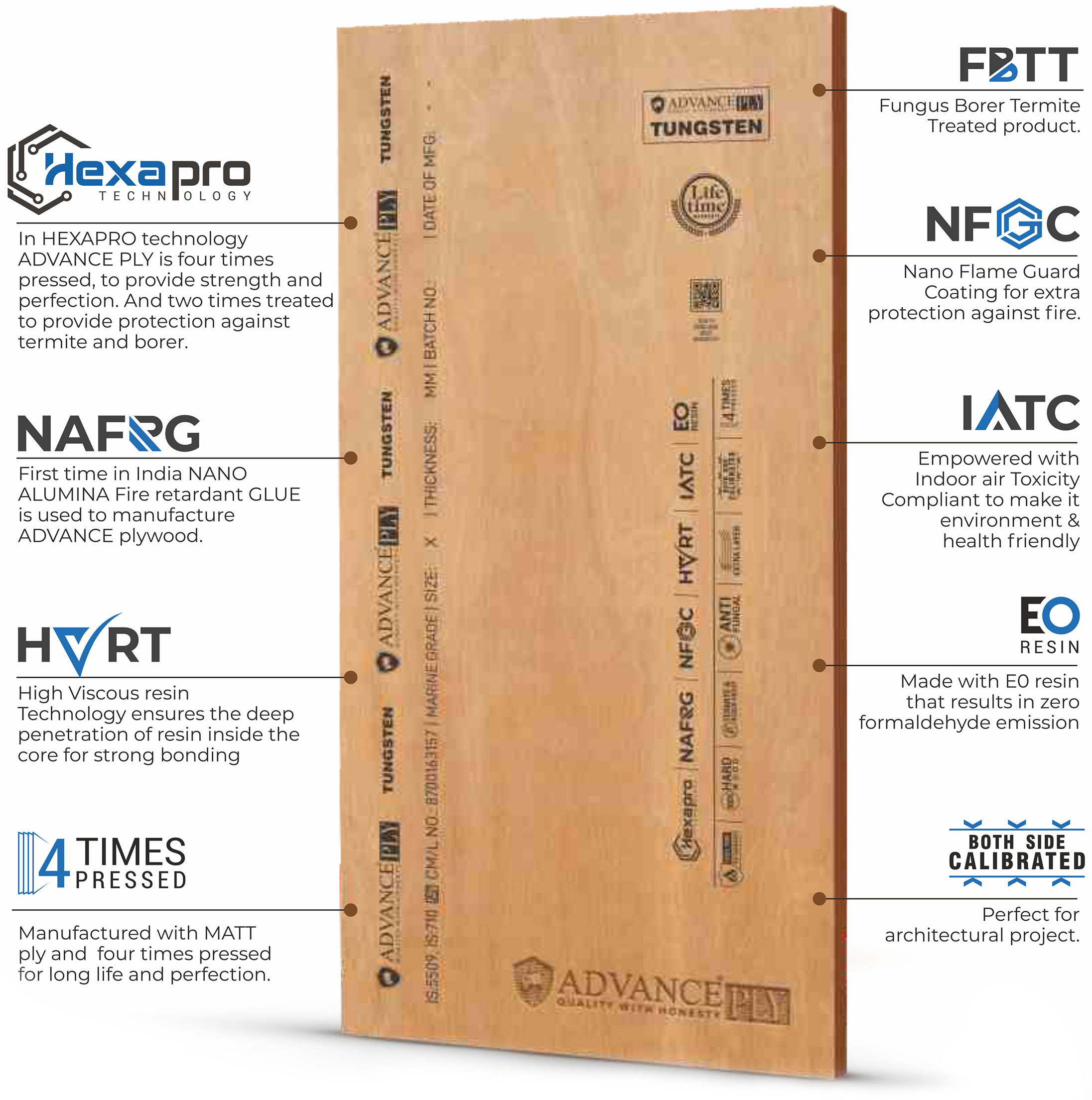

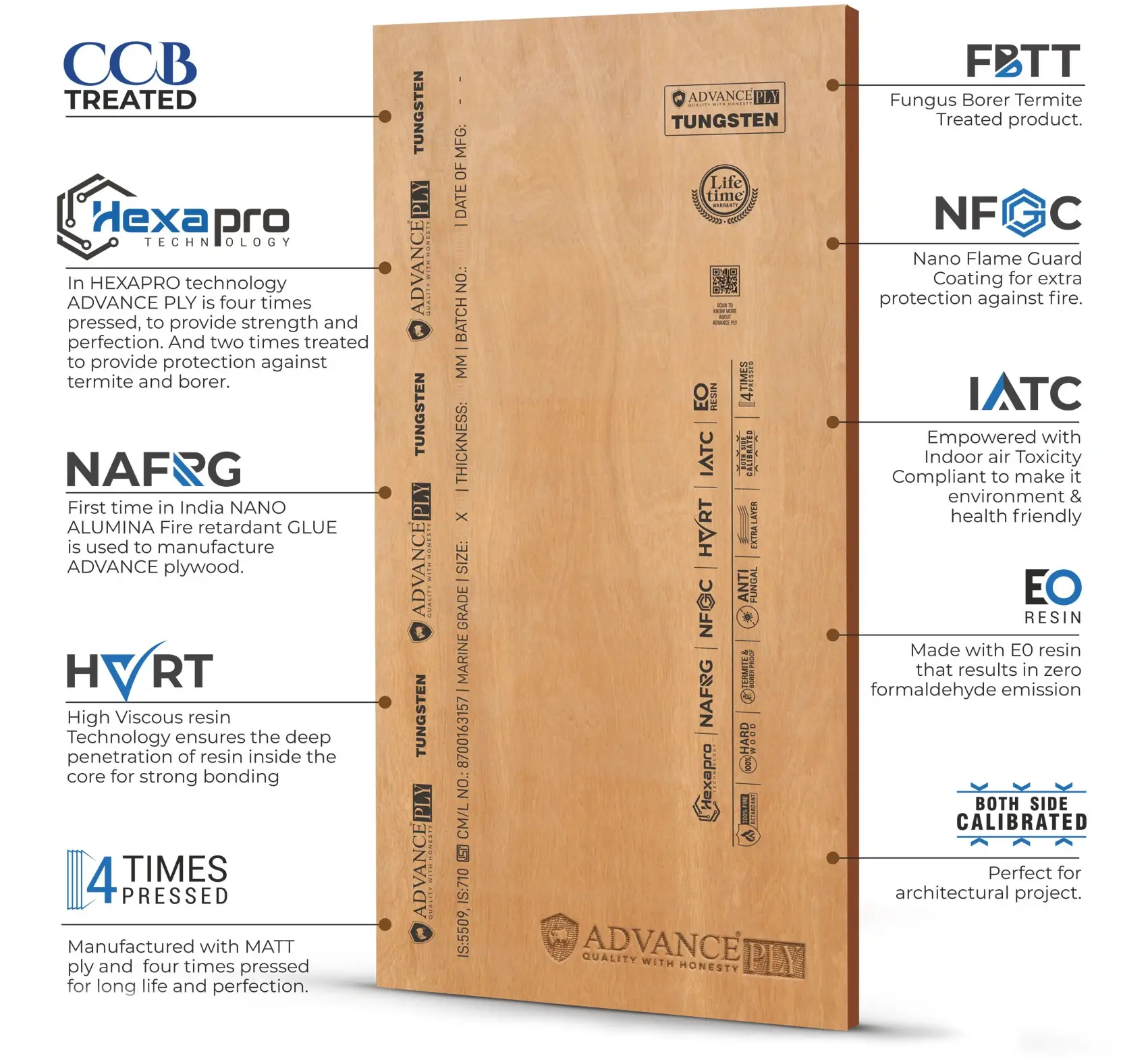

MADE WITH EO GRADE RESIN, SUPER HIGH DENSITY, BOILING WATER PROOF, MARINE GRADE, FIRE RETARDANT, IS: 5509, IS: 710, 100% HARDWOOD CONSTRUCTION
Features
- EO MPF BWP Grade Resin
- Boiling water proof for >250 Hrs
- All Glue Line Treated with Anti Borer, Termite & Fungi Chemicals
- Nano Alumina Treatment for Fire Resistance
- Nano Alumina Treatment for Fire Resistance
- High Density 0.8 GMS/CM3
- Extra Layer for Strength (13 Layers)
- High Viscosity Resin Technology
Advantages
- Highest grade waterproof resin
- Long lasting bond even under high moisture or humidity
- Stops insects and fungus from attacking the plywood
- Introducing India's First Ever Internally Fire-Retardant Plywood-Safety Like Never Before!
- Extra coating of Chamical name on plywood for retarding spread to fire
- Stronger than plywood with normal density
- Increased strength due to extra layer
- Helps even spreading of resin Leading to perfect bond between layers
Benefits
- No emission of gases. No delamination in Boiling Water.
- Very high water-proofing and longevity of products.
- No powders formation decay or termite Attack on your furniture
- Our Plywood Resists and Delays Fire Spread and Penetration for Maximum Safety
- Resists catching fire and spreading to fire.
- can be used more load bearing is required nails & screw holding properties
- Can bear extra load and high streess
- Uniform Bonding and Strength of plywood
Technical Specifcation for BWP Grade Plywood
Base Material
Hardwood (13 layer construction)
Face material
Tropical hardwood Species
Glue/Adhesion
Bonded with Phenol formaldehyde resin with provides boiling water proof
Calibrated
Yes
Compliance standard
Conforms to IS 710 (Indian standard for Marine plywood)
Thickness Range
Commonly available in 6 mm to 19 mm
Standard Size
Sheet typically comes in such as 8×4, 7×4, 6×4, 8×3, 7×3, 6×3
Density
Avg density – 0.78g/cm 3
Moisture Resistance
Up to 250 hrs. Boiling water proof
Moisture Content
5 ~ 15% in oven dry method
Formaldehyde emission type
EO Grade
CCB Treated
Core veneer treated with Copper-Chrome- Boron
Weather Resistance
Withstand adverse climatic conditions
Screw holding capacity
More than 1600 N
Retention of Preservative
12.5kg/m3
Fire Resistance
Flame penetration – More than 60 min., Flammability – More than 45 min., Rate of burning – More than 30 min.
Modulus of Elasticity-Dry state
Along the grain – Avg – 6980 N/mm2 , Min – 6359 N/mm2, Across the grain – Avg – 4893 N/mm2, Min – 4356 N/mm2
Modulus of rupture-Dry state
Along the grain – Avg – 49 N/mm2, Min – 43 N/mm2
| Sr. No. | Parameters | Standards |
|---|---|---|
| 01 | Base Material | Hardwood (13 layer construction) |
| 02 | Face material | Tropical hardwood Species |
| 03 | Glue/Adhesion | Bonded with Phenol formaldehyde resin with provides boiling water proof |
| 04 | Calibrated | Yes |
| 05 | Compliance standard | Conforms to IS 710 (Indian standard for Marine plywood) |
| 06 | Thickness Range | Commonly available in 6 mm to 19 mm |
| 07 | Standard Size | Sheet typically comes in such as 8x4, 7x4, 6x4, 8x3, 7x3, 6x3 |
| 08 | Density | Avg density - 0.78g/cm 3 |
| 09 | Moisture Resistance | Up to 250 hrs. Boiling water proof |
| 10 | Moisture Content | 5 ~ 15% in oven dry method |
| 11 | Formaldehyde emission type | EO Grade |
| 12 | CCB Treated | Core veneer treated with Copper-Chrome- Boron |
| 13 | Weather Resistance | Withstand adverse climatic conditions |
| 14 | Screw holding capacity | More than 1600 N |
| 15 | Retention of Preservative | 12.5kg/m3 |
| 16 | Fire Resistance |
|
| 17 | Modulus of Elasticity-Dry state Along the grain Across the grain |
Avg - 6980 N/mm2 Min - 6359 N/mm2 Avg - 4893 N/mm2 Min - 4356 N/mm2 |
| 18 | Modulus of rupture-Dry state Along the grain Across the grain |
Avg - 49 N/mm2 Min - 43 N/mm2 |
